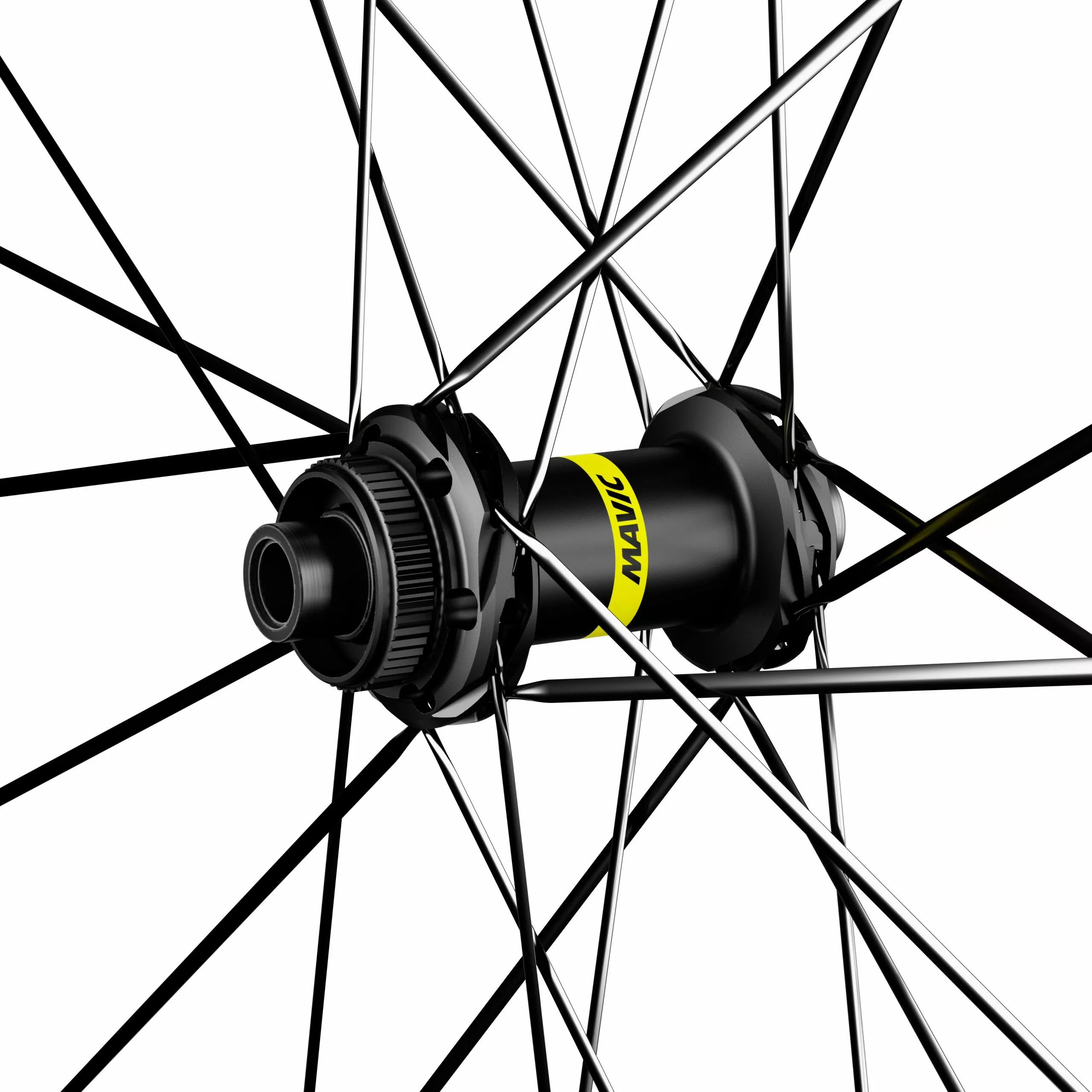

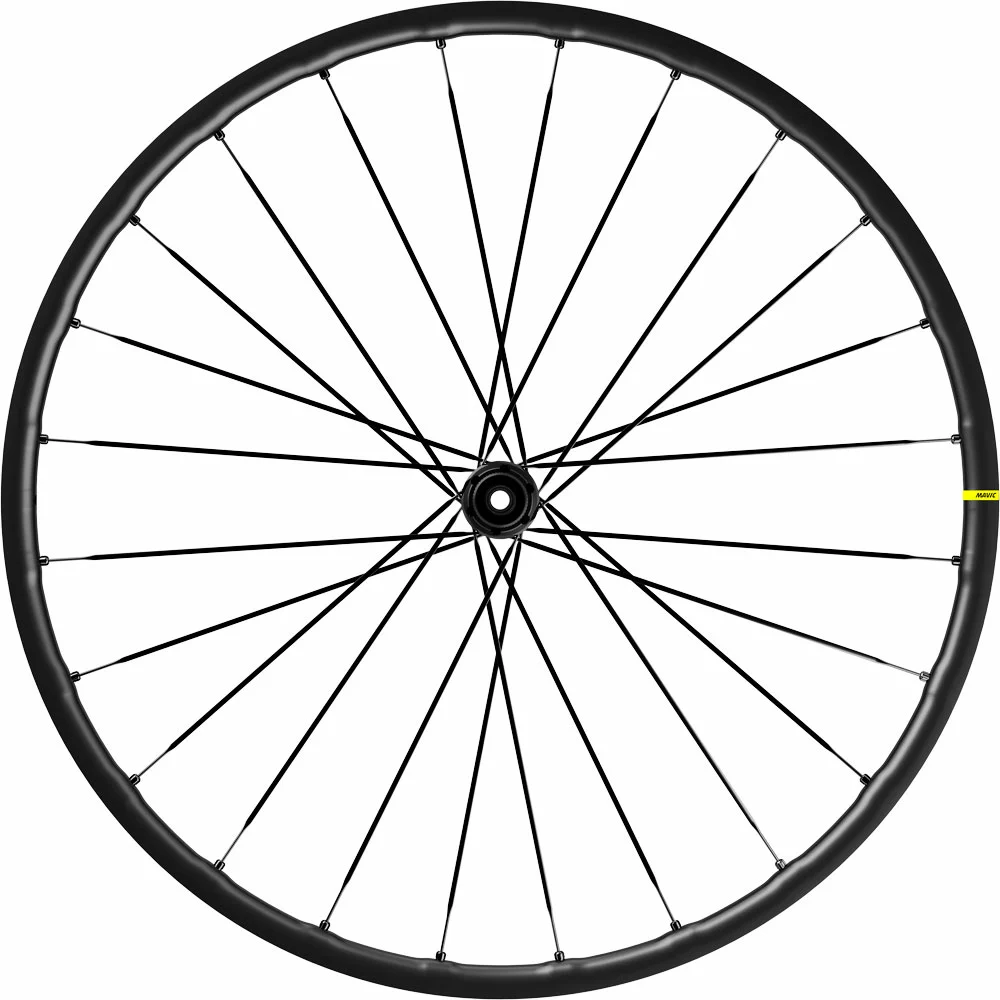

Mavic Allroad SL DCL Front Wheel

Mavic’s Allroad line has no preferences when it comes to the surface: rough roads, pave, bad tarmac, forest tracks or gravel roads — the durable aluminum wheels don’t mind. They playfully combine speed and control. Optimized for large-volume tires with 22mm rim width, this tubeless wheel is made for your next Allroad adventure.

---

Features – Allroad SL Disc Center-Lock

• 22mm wide UST rims integrated for a smooth ride with a wide range of tubeless tires from 28-64mm
• UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads
• No tubes means less friction, better efficiency and grip, and pinch-flat protection
• ISM4D rim weighs only 440g
• Patented lightweight aero spokes
• Automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability
• Fore drilling doesn’t require the use of rim tape: 30g saved per wheel
• 17mm axle and new hub design

Product features

• Use: Road, Gravel, Cyclocross
• Model: Allroad
• Wheel size: 28″
• Rim type: Clincher
• Tubeless: ✔
• ETRTO: 622
• Bearings: Auto adjust sealed cartridge bearings (QRM Auto)
• Rim inner width: 22mm
• Rim height: 22mm
• Hub axle system: 12 x 100mm thru axle
• Spoke type: straight pull, elliptical aero, double butted (patented)
• Spokes: 24 crossed 2
• Brake type: Disc Brake
• Brake system: Disc Center-Lock
• Recommended tyre sizes: 28 to 64 mm (1.1″ to 2.5″)
• Valve hole: Presta / SV Ø 6.5mm
• ASTM Catergory: 2 (road and offroad with jumps less than 15cm)
• Recommended system weight max: 120 kg (Rider + Bike + Equipment)

Material

• Rim: Maxtal Aluminum
• Hub: Aluminum
• Freehub: Aluminum
• Spoke: Steel
• Nipples: Aluminum

Color

• black

Weight (manufacturer information)

• 740g

---

Scope of delivery

• 1 Mavic Allroad SL DCL Front Wheel
• 1 UST valve and accessories

---

Technology

Fore Technology
Mavic’s Fore technology is the latest achievement of the traditional French manufacturer. It’s the result of years of research and combines low weight and improved tubeless assembly with increased rigidity and ease of repair. 10% lighter and stronger than traditional wheel designs, the Fore Technology incorporates spokes that fit directly into a co-molded metallic insert that avoids the need to drill the upper rim bridge. This negates the need for rim tape, makes for easy repairs, and saves an additional 30g per rim.

Infinity Hub
Equipped with the all-new Infinity Hub that harnesses a trinity of hallmarks that enhance power transfer, durability, and compatibility. Easily serviceable without the need for specialized tools, the hub offers automatic bearing preload adjustment (QRM Auto). Designed for compatibility and ease of use, the Infinity Hub can be converted to all major freewheel drive options and axle dimensions.

UST Tubeless Technology
Traction, control and lightweight. The UST concept improves traction, control and comfort while reducing inertia and flats. Tubeless constructions are lighter, reduce the rolling resistance and provides more comfort.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high quality sealed cartridge bearings. On QRM wheels, they feature double sealing (2RS or LLU) together with tight C3 internal clearance.
