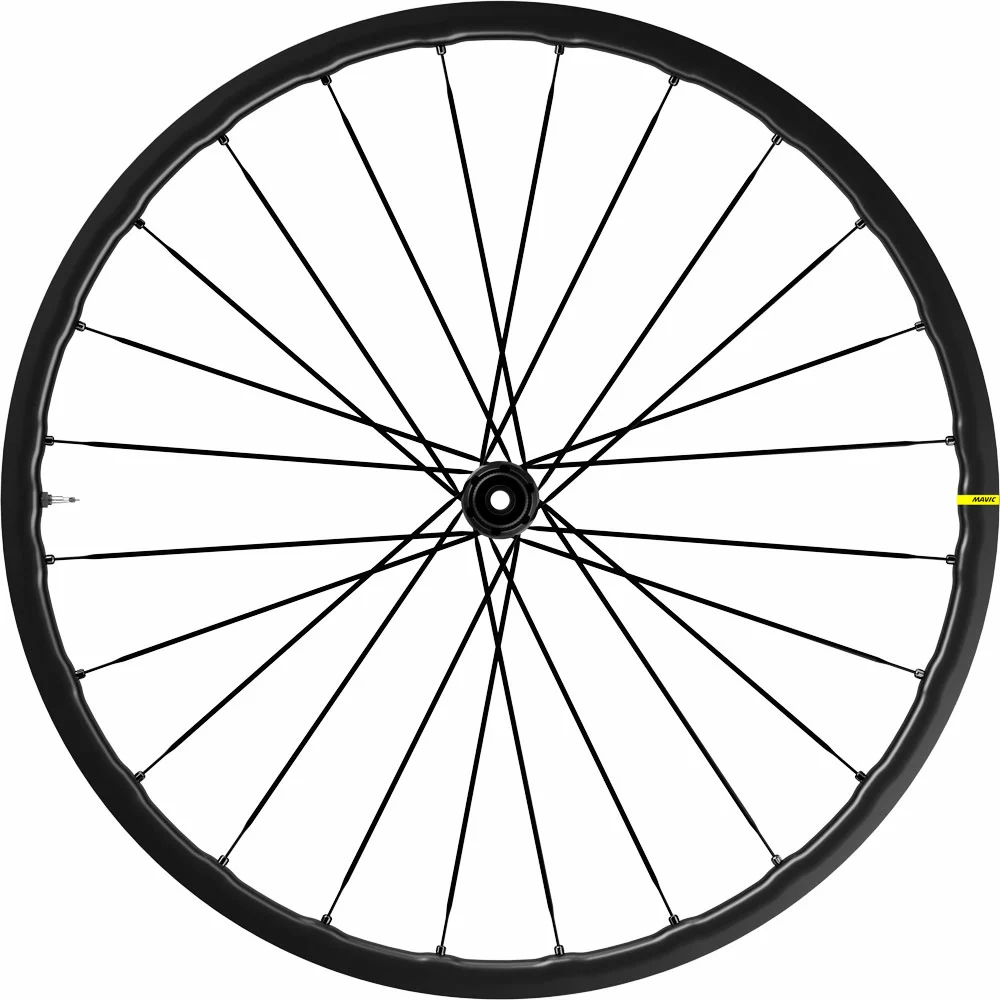

Mavic Ksyrium SL DCL Front Wheel

Ksyrium SL DCL is Mavic’s top of the range lightweight aluminum wheel in disc standard. Ksyrium SL combines lightness and high lateral stability with vertical flexibility to push the dynamic riding characteristics into unimagined spheres. On top of that, the wheels are equipped with Fore technology to bring maximum tubeless performance to the road! This package is rounded off with high-quality Infinity hubs.

---

Features – Mavic Ksyrium SL Disc Center-Lock

• SM4D rim weighs only 400g
• Patented lightweight aero spokes and 22mm deep/19mm wide rims keep inertia low and control high
• Fore technology eliminates the need for rim tape, saves 30g per rim
• Laterally stiff, vertically compliant for a more dynamic ride
• Fore technology keeps the rim upper bridge solid to make the rim stiffer
• New Infinity hub plaform: stiff axle, durable bearings and new hub design guarantees wheel stability
• Improved UST Road delivers more speed, comfort and control in an easy to use tubeless system
• No tubes means less friction, better efficiency and grip, a reduced risk of punctures
• New rim bed shape makes it easier to mount and change tires

Product features

• Use: Road

• Model: Ksyrium SL
• Wheel size: 28″
• ETRTO: 622×19
• Rim type: Clincher
• Tubeless: ✔
• Bearings: Auto adjust sealed cartridge bearings (QRM Auto)
• Rim inner width: 19mm
• Rim height: 22mm
• Hub axle system: 12 x 100mm thru axle
• Spoke type: straight pull, flat, double butted
• Spokes: 24 crossed 2, contactless
• Brake type: Disc brake
• Brake system: Disc Center-Lock
• Recommended tyre sizes: 25mm to 32mm
• Valve hole: Presta / SV Ø 6.5mm
• ASTM Catergory: 1 (road only)
• Recommended system weight max: 120kg (Rider + Bike + Equipment)

Material

• Rim: Maxtal Aluminum
• Hub: Aluminum
• Spoke: Steel
• Nipples: Fore integrated Aluminum

Color

• black

Weight (manufacturer information)

• 723g

---

Scope of delivery

• 1 Mavic Ksyrium SL Rear Wheel
• 1 BR301 quick release
• 1 UST valve and accessories

---

Technologies

Fore Technology
Mavic’s Fore technology is the latest achievement of the traditional French manufacturer. It’s the result of years of research and combines low weight and improved tubeless assembly with increased rigidity and ease of repair. 10% lighter and stronger than traditional wheel designs, the Fore Technology incorporates spokes that fit directly into a co-molded metallic insert that avoids the need to drill the upper rim bridge. This negates the need for rim tape, makes for easy repairs, and saves an additional 30g per rim.

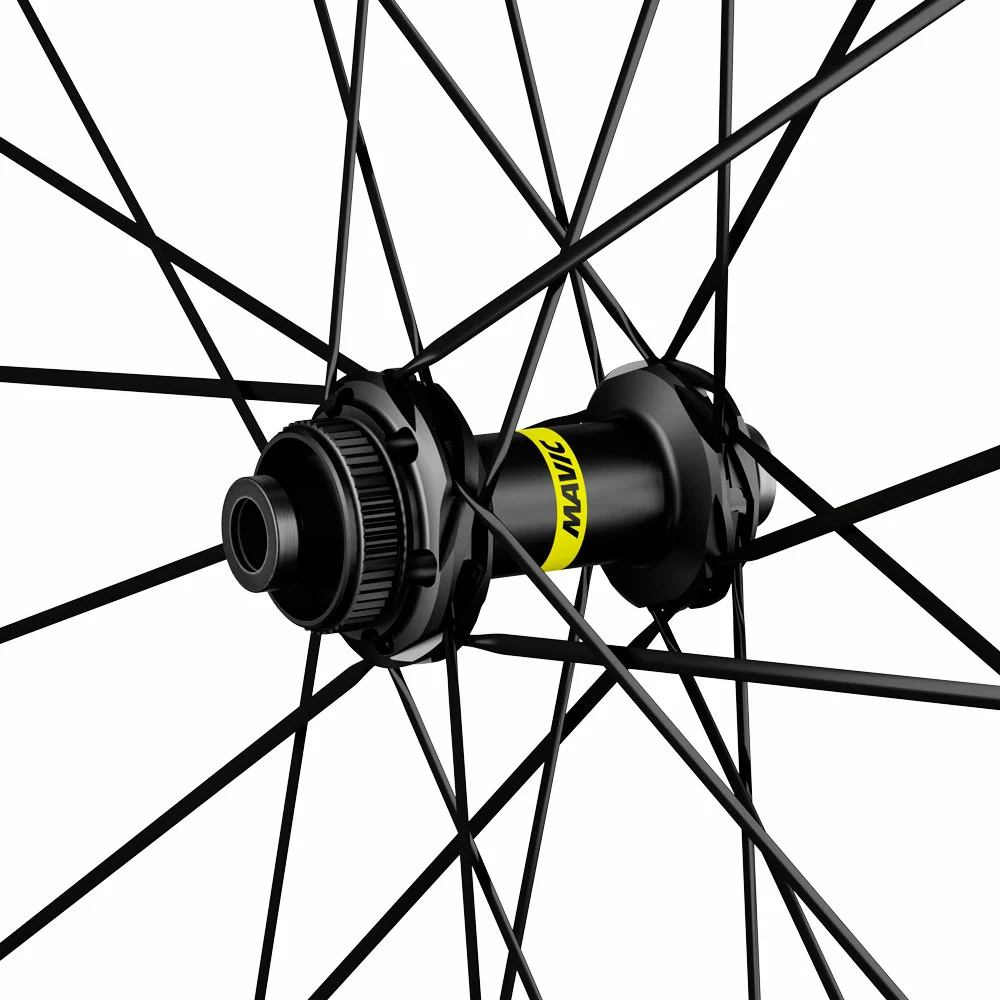

Infinity Hub
Equipped with the all-new Infinity Hub that harnesses a trinity of hallmarks that enhance power transfer, durability, and compatibility. The hub offers automatic bearing preload adjustment (QRM Auto). Designed for compatibility and ease of use, the Infinity Hub can be converted to all major freewheel drive options and axle dimensions.

UST Tubeless Technology
Traction, control and lightweight. The UST concept improves traction, control and comfort while reducing inertia and flats. Tubeless constructions are lighter, reduce the rolling resistance and provides more comfort.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high quality sealed cartridge bearings. On QRM wheels, they feature double sealing (2RS or LLU) together with tight C3 internal clearance.
